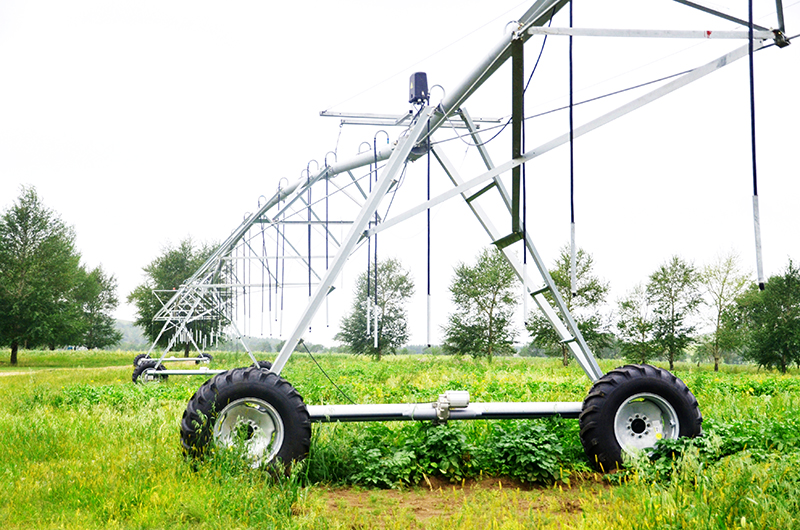

Lateral move irrigation
Track DPP two/four irrigation equipment is a parallel movement type, the center
and all across the body moving parallel to flow from the center through the
nozzle body are evenly distributed on the surface of irrigation, referred to as
machine translation.
Structure characteristics
The operation is flexible and convenient, and can pass through the farmland,
which is suitable for narrow and long plots, and the walking control area
occupies small area, without irrigation dead angle, and the land utilization
rate reaches 100%. It can also walk in irregularly shaped or L shaped farmland,
or drag it to another farm.
application area
Two irrigation machine is suitable for rectangular or trapezoidal plots,
plots of land supply mode can be used along the canal or water supply by water
drag. The power system adopts the diesel generator to supply or drag the cable
construction site, and uses the trench guidance.
Specification parameter
Serial number
project
Specification
parameter
1
water main
6-5/8”（168mm*3mm
wall thickness）
2
Reinforced type
8”（203mm）
3
Standard type per
span
6-5/8”（168mm）x 54.5m
4
Lengthened span
61.3m
5
Cantilever tube
141mm x 13.4m
6
Cantilever
lengthening tube
101mm x 13.4m
7
Working power supply
and voltage
Generator power
supply：380V/50HZ
8
power
4—11KW
9
Tire specification
14.9 x 24 tyre
10
Walking mode
Electric drive gear
box
11
Motor power
0.75horsepower
--1.5horsepower
12
Speed of electric
drive gear box
40:1
13
Translation type tire
turbine reducer
50:1
